ViewBoard IFP8652 ViewBoard® 86" 4K Interactive Display ​

VIEWSONIC VIEWBOARD 52 SERIES OVERVIEW

The ViewBoard® 52 Series is a 4K Ultra HD interactive whiteboard equipped with user-centric design features and best-in-class collaboration tools for today’s lessons made easy. With a single-cable solution for instant, worry-free connectivity and a unique angular design for easy access to shortcut keys and I/O ports, teachers can seamlessly connect and control for uninterrupted, flowing classes. Dual-pen capability, 33-point touch, Ultra Fine Touch and palm awareness technology combine for a naturally smooth writing experience and endless opportunities for student collaboration, supported by 2X15W front-facing speakers and a 15W subwoofer for amplified student engagement. In another industry-first feature of the display, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualiser to select the most appropriate camera and mic source. Complete with a browser-based remote management system, the ViewBoard 52 Series delivers a market-leading interactive whiteboard solution for teachers, students, and IT managers.

Best-in-Class Collaboration Tools
The 4K Ultra HD display comes equipped with Ultra Fine Touch and palm awareness technology to deliver a completely natural writing experience with dual-pen, 33-point touch capability to support in-class or online student collaboration.

Industry-Leading Classroom Sound
Designed to fill the classroom with robust, attention-grabbing sound, the ViewBoard 52 Series features 2X15W speakers and a 15W subwoofer embedded within the front-facing soundbar to further amplify the impact of in-class music and videos for increased overall engagement.

Advanced Eye-Care Technology
With True Flicker-Free technology, a blue light filter, and an anti-glare coating all built directly into the display hardware, the ViewBoard 52 Series offers an automatic, superior viewing experience that is both eye friendly and energy efficient.

Remote Management System
The browser-based myViewBoard® Manager application allows IT managers and verified admin users to update, schedule, broadcast and manage multiple displays simultaneously from any location through a secure, user-friendly remote management system.

Device Agnostic and Software Compatible
Designed to use the software you know, the ViewBoard 52 Series operates on Android 9.0 and is compatible with Windows, Mac, Chrome and Linux with full touch input functionality for all connected devices.

Enterprise-Grade Safety and Security
The built-in AWS-powered myViewBoard® whiteboarding software provides comprehensive and trustworthy data protection through cloud-powered security and encryption to ensure the security and safety of private files and information.

Advanced Screen Bonding Technology
By reducing the space between the glass and the panels to a single millimeter, advanced bonding technology brings even brighter, better, and clearer visuals to an already impressive display.

Immersive Front-Facing Speakers
Recognising the power of sound in student engagement, the in-built speakers are positioned front and center to fill the room with rich audio that ensures every detail can be heard.

Responsive 8-Mic Array
An in-built 8-mic array with acute noise detection and cancellation capability. Combined with another industry-first feature within the ViewBoard 52 Series, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualiser to select the most appropriate camera and mic source.

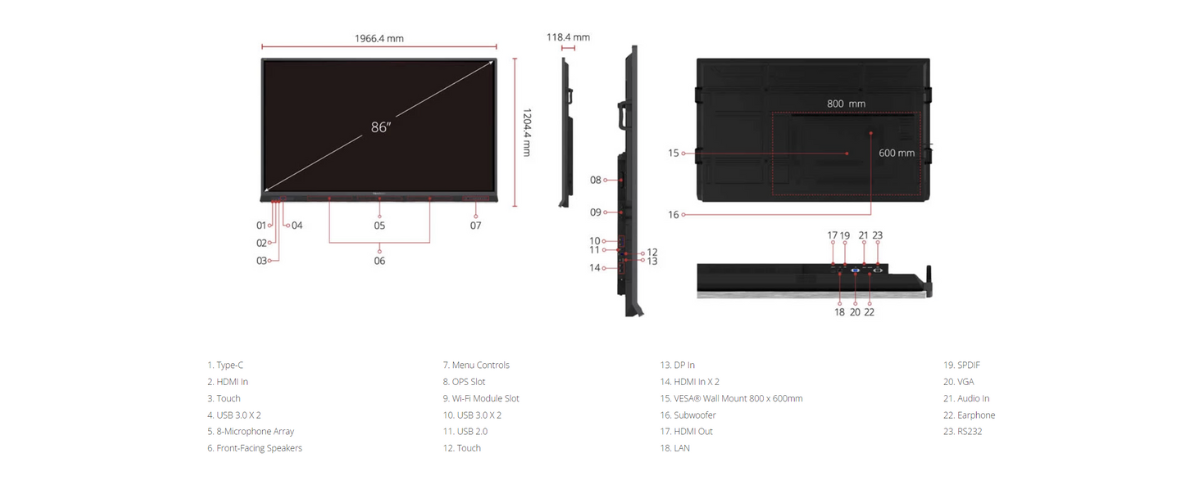

Dimensions & I/O Ports

SPECIFICATIONS

DisplayPanel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1895.04(H) x 1065.96(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 400 nits (typ.), 450 nits (max.)
Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Response Time: 6ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours (Typ.)
Surface Treatment: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating

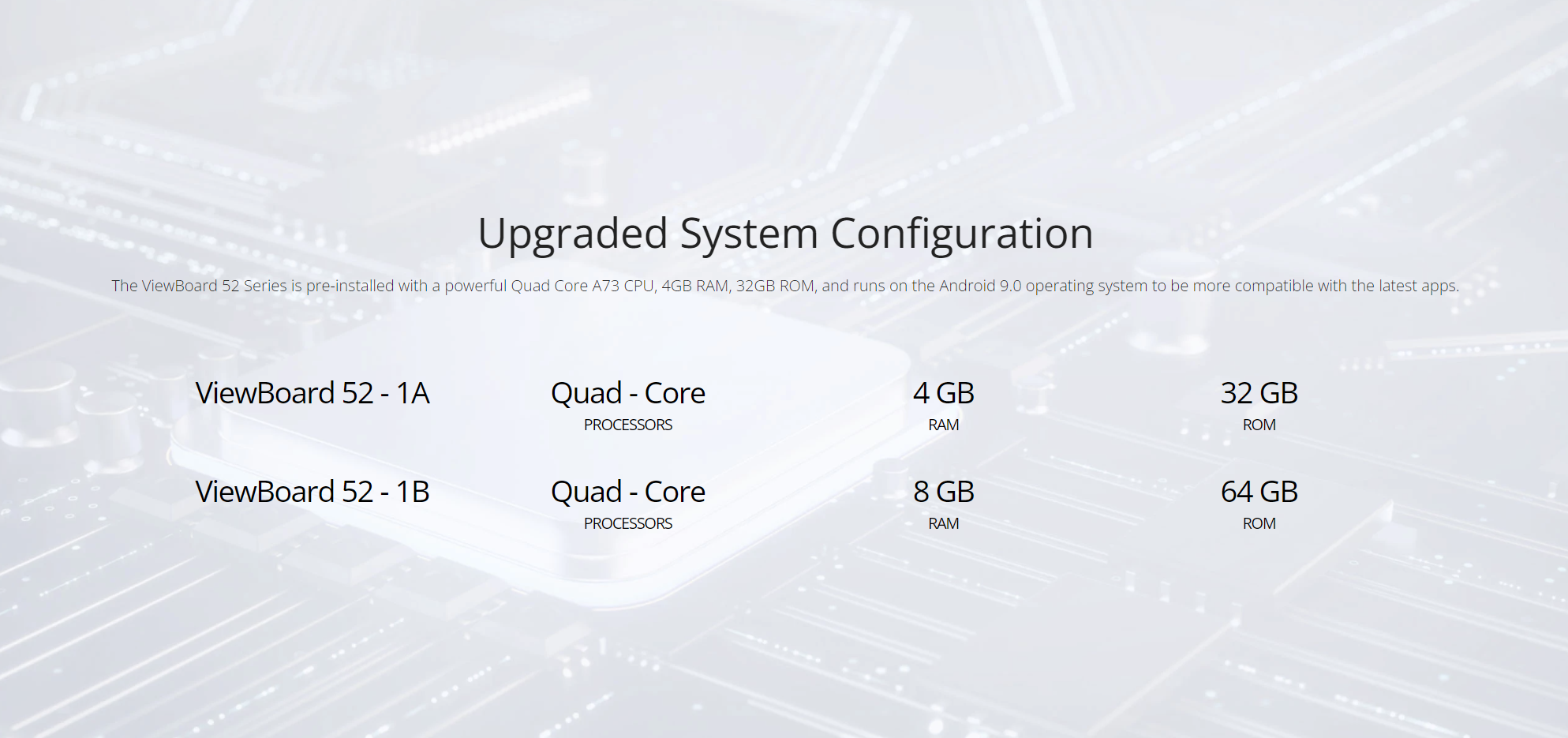

PlatformProcessor: ARM Cortex A73*4
RAM: 4GB (IFP8652-1A), 8GB (IFP8652-1B)
Storage: 32GB (IFP8652-1A), 64GB (IFP8652-1B)

TouchType/ Tech: UFT (Ultra Fine Touch) Technology
Touch Resolution: 32767 x 32767
Touch Point: Windows: 33 points touch, Android: 20 points touch

INPUTHDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x 1), x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
RGB / VGA: x1 (1920x1080 @60Hz)
DisplayPort: x1 (3840x2160 @60Hz)
Audio: x1 (PC audio in)
RS232: x1
OPS: module slot x 1
WiFi: module slot x 1

OUTPUTHDMI: x1 (on demand)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)

LANRJ45: x1

USBType A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB)
Type B: x2, for touch
Type C: x1 (USB3.0, DP1.2 Alt Mode, Ethernet, PD 65W)

SPEAKERS15W x 2 + 15W x 1 subwoofer

MICROPHONEbuilt-in 8-array microphone

Top Camera PlateYes

Embedded OSAndroid 9 (Android 11 upgradable)

Bundle SoftwareBasic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display

Special FeaturesAll-in-one USB port: USB 3.0 x 4
Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC
Light Sensor: Yes

PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: 187.9W (Typ.) < 0.5W ("Off")

ERGONOMICSWall Mount (VESA® ): 800 x 600

OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH Non-Condensing

DIMENSIONS (W x H x D)Physical (inch / mm): 1966.4 (W) x 1204.4 (H) x 118.4 (D) mm, 77.42 (W) x 47.42 (H) x 4.66 (D) inch
Packaging (inch / mm): 2140 (W) x 1340 (H) x 280 (D) mm, 84.25 (W) x 52.76 (H) x 11.02 (D) inch

WEIGHTNet (lb / kg): 156.53 lb / 71.0 kg
Gross (lb / kg): 196.43 lb / 89.1 kg

REGULATIONScTUVus, FCC, EPEAT, Mexico coc, Mexico Energy, RoHS, Energy Star 8, CEC, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI, RCM, BIS, PSE, VCCI, CCC, CECP, BSMI

PACKAGE CONTENTS1. Power cable (3 meters) 2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser 13. AAA Battery x 2

Compatible Slot-in PCVPC12 & VPC25/27-O & VPC25/27-O-B series
