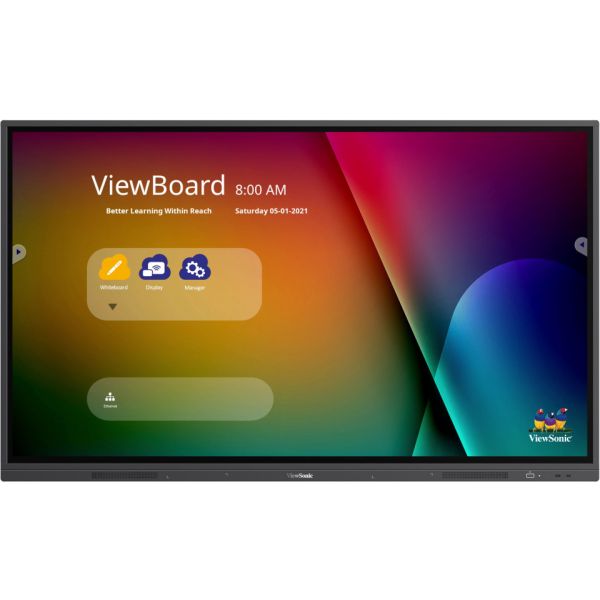

ViewBoard IFP5550-5 ViewBoard® 55” 4K Interactive Display

VIEWSONIC VIEWBOARD 50-5 SERIES OVERVIEW

Designed with modern educators in mind, the ViewBoard® 50-5 Series offers an intuitive and interactive interface for a multi-user writing experience. With a single-cable USB-C for instant, worry-free connectivity, teachers can seamlessly plug-in and control their devices while continuing the lesson. Both students and educators enjoy smooth writing with Ultra Fine Touch Technology offering 40-point touch, and the dual-pen that comes in a range of colours and sizes. Rest assured you and your students' eyes are cared for and protected as the ViewBoard® 50-5 Series comes with Flicker-Free technology and an integrated TÜV certified blue light filter for all brightness levels. Fully integrated with the myViewBoard suite, the ViewBoard® 50-5 Series brings together hardware and software for a complete classroom solution. Compatible with a full line of accessories, the ViewBoard® 50-5 Series enables you to effectively teach with a variety of engaging tools.

Convenient Browser-based Screen Sharing
Share your screen with myViewBoard Display without any complicated setup. This browser-based casting service supports instant sharing from compatible devices without additional cables or pre-downloaded apps.

Efficient Remote Communication and Management
Update, schedule, broadcast, and manage multiple displays simultaneously from any location via a secure, user-friendly remote management system. Streamline campus communication with multimedia messages, share text announcements, or set up emergency alarms. All thanks to myViewBoard Manager. Disclaimer: *Task scheduling and multimedia broadcast are available with the optional Manager Advanced license

Performance and Safety with the Latest OS ​
Enjoy powerful performance delivered by the ViewBoard 50-5 Series’ octa-core CPU, while ensuring all your data is safely protected with the Android 11 OS. This latest version is also compatible with more third-party apps, so you can access all your favorite services within a familiar environment.

Immersive Audio for Captivating Lessons
Boost student engagement and information retention thanks to immersive sound. Boasting two 15W speakers and a 16W subwoofer, the ViewBoard® 50-5 Series magnifies music and videos with sound in unparalleled quality.

Easy on the Eyes
The ViewBoard® 50-5 Series employs the latest technology to safeguard the eyes of both children and adults, while not compromising on the high-quality visual experience. Flicker-Free Technology, TÜV-certified low blue light, and anti-glare coating work together to provide safe and comfortable use, all day long.

Grow Green
Committed to sustainability, ViewSonic is actively working to implement advanced energy efficiencies and eco-friendly concepts across product lines. The ViewBoard® 50-5 Series meets energy consumption standards, is attentive to supply chain carbon emissions, and end-of-life management. It is also EPEAT bronze certified, making it a great environmentally friendly product.

Customise your Teaching ​
The ViewBoard® 50-5 Series comes complete with a full line-up of accessories. Customise your device with a portable speakerphone, slot-in PC, a motorised trolley cart, and a document camera, alongside many more add-ons for all teaching needs and scenarios.

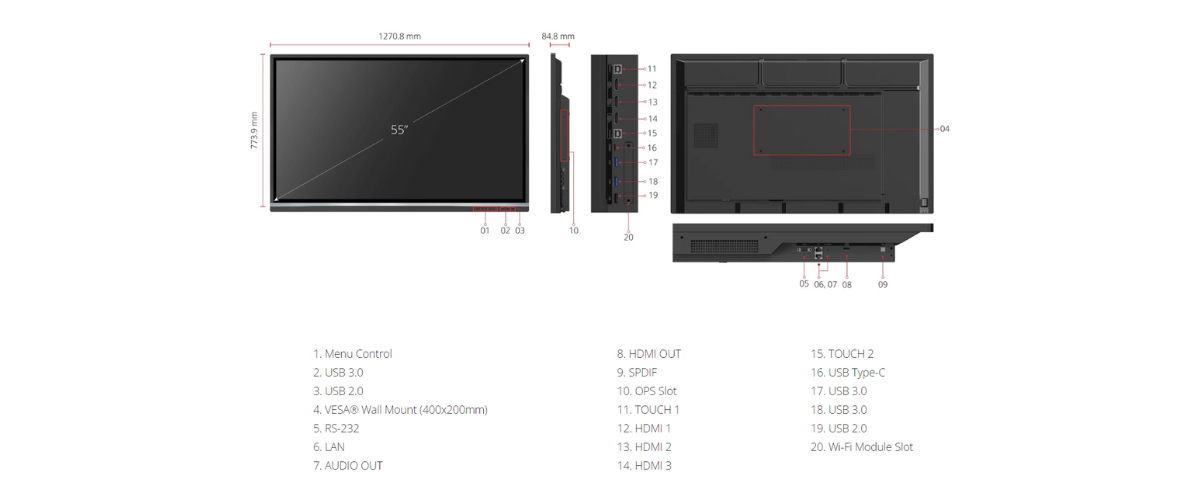

I/O Port

SPECIFICATIONS

DisplayPanel Size: 55"
Panel Type: TFT LCD Module with DLED Backlight. IPS
Display Area (mm): 1209.6(H) x 680.4 (V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160
Colors: 1.07B colors (8bit+FRC)
Brightness: 400 nits (typ.)
Contrast Ratio: 1200:1 (typ.) 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours (Min)
Surface Treatment: Hardness: 7H, Anti-glare coating
Bezel: Slim
Orientation: Landscape

PlatformProcessor: ARM Cortex-A73*4 + Cortex-A53*4
RAM: 4GB
Storage: 32GB

TouchType/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32767×32767
Touch Point: Windows: 40 points of touch, Android : 20 points of touch

INPUTHDMI: 2.0 x 3 (3840x2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
RS232: x1
OPS: x1
WiFi: x 1 module slot

OUTPUTHDMI: x1 (4K@60Hz)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)

LANRJ45: x2

USBType A: 2.0 x 2
3.0 x 4
Type B: x2, for touch
Type C: x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M)

SPEAKERS12W x 2 + 16W x 1 subwoofer

Top Camera PlateYes

Embedded OSAndroid 11

Bundle SoftwareBasic Annotation Software: myViewBoard
Pro Annotation Software: Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation: vCast/myViewBoard Display App

Special FeaturesAll-in-one USB port: “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: Simple LAN sharing between IFP and slot-in device
Light Sensor: Yes

PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: 89W(typ.), 0.5W (off)

ERGONOMICSWall Mount (VESA® ): 400mm x 200 mm

OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing

DIMENSIONS (W x H x D)Physical (inch / mm): 49.9 x 30.4 x 3.3 in / 1268 x 773 x 85 mm
Packaging (inch / mm): 56.2 x 34.6 x 8.7 in / 1428 x 878 x 220 mm

WEIGHTNet (lb / kg): 58.2lb/26.4kg
Gross (lb / kg): 78.3lb/35.5kg

REGULATIONScTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA

PACKAGE CONTENTS1. Power cord
2. Remote control with AAA battery
3. Touch USB cable
4. Touch pen x 2
(VB-PEN-009)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8
10. HDMI cable

Compatible Slot-in PCVPC2-O series • VPC2-O-B series • VPC25-W33-O1-1B • VPC27-W53-O1-1B • VPC12-WPO-17 • VPC12-WPO-18
