Optoma Creative Touch 3 Series 86" interactive flat panel display 3862RK

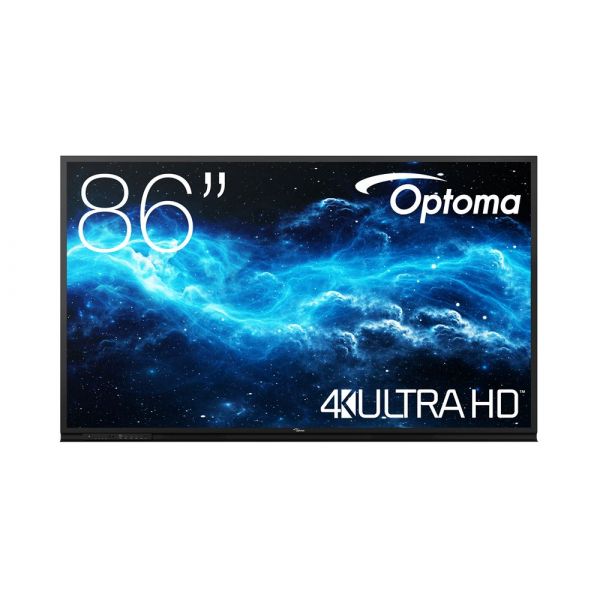

Creative Touch 3 Series 86" interactive flat panel display

Robust collaboration, extensive connectivity options and a value-focused design. Combining the latest technology and packed with everything a classroom or business requires, the Creative Touch 3 Series delivers all the functionalities and processing power needed to create, educate and collaborate.

Easily access the front-facing ports for HDMI and USB connectivity. For wireless connectivity, Optoma’s TapCast Pro allows up to four users to share content at the same time from their Windows, iOS, macOS, Chrome or Android device.

The easy-to-use IFPDs also make lessons more fun with built-in collaboration tools such as Vote, where teachers are able to collect valuable feedback instantly.

Equipped with an OPS slot, and easy to download OTA updates, the touchscreen display is future-proofed should your requirements change in the ever-changing world of technology. (OPS sold separately).

Optoma file manager
Optoma file manager allows users to manage files and folders. Users can also access cloud drives and browse, create, rename, copy, move and delete files.

Cloud Whiteboard
Connect easily.

Sync with your cloud accounts to plan your lessons from anywhere, at any time. As Creative Board is a cloud-based platform, you can access your lesson materials from any Optoma Creative Touch 5-Series IFPD in your school

TUV Certified Low blue light display
The built-in low blue light mode helps reduce eyestrain and tiredness by minimising the blue light output from the display.

Screen recording
Optoma Creative Touch 3 Series comes with video recording functionality that allows teachers to record their lectures or businesses to record their meetings for preparation or review purposes.

Ambient light sensor
The built-in light sensor detects the amount of ambient lighting surrounding the panel and adjusts the display accordingly in order to guarantee an optimal picture quality and the best viewing experience possible.

Specification

Display
Back light Direct type LED
Size (diagonal) 86"

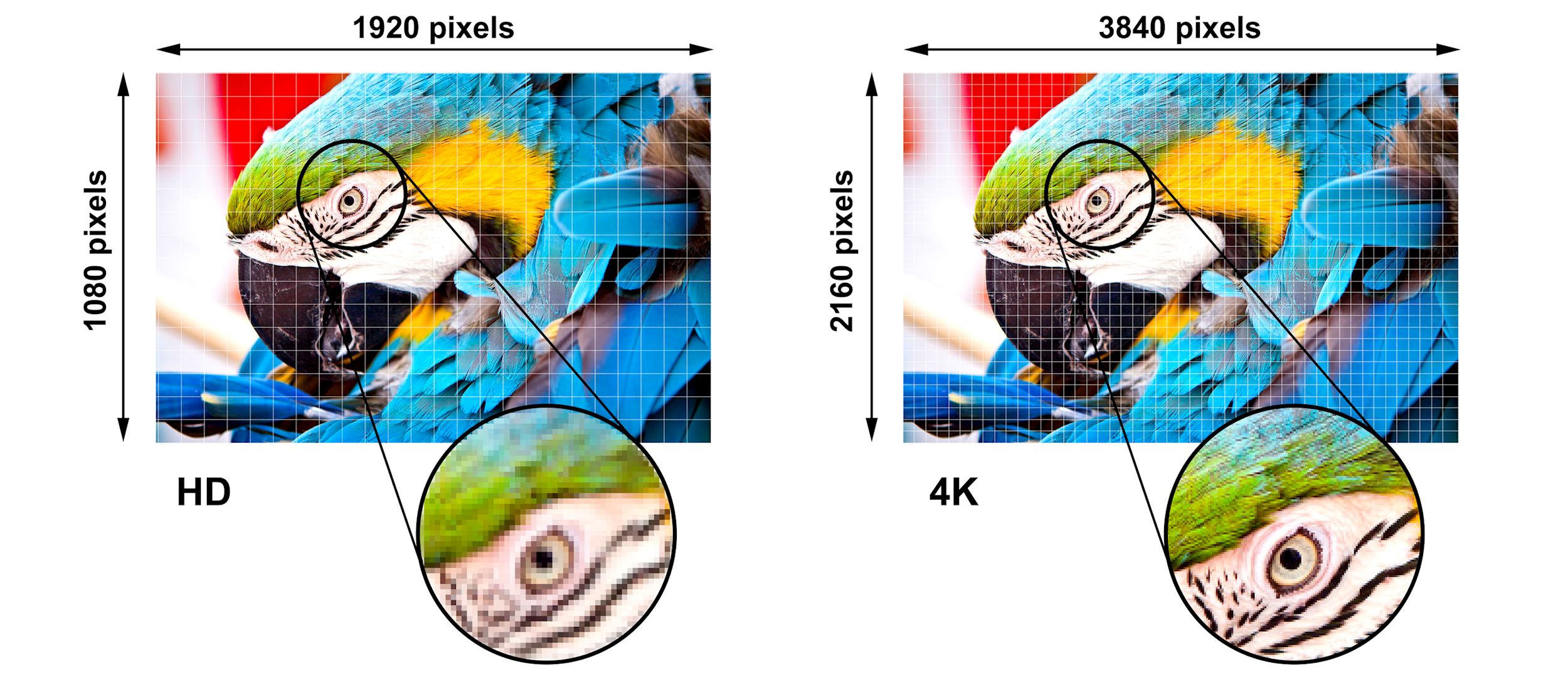

Resolution3840x2160
Brightness 400
Contrast ratio (dynamic) 5,000:1
Viewing angle 178°
Response time 6ms
Life 50,000 hours
Display colours 1,070
Speaker count 2
Watts per speaker 20W
Surface hardness 9H
Glass Anti Glare + Anti Finger Print / HAZE: 4-8%
Ambient light sensor Yes
Air gap 4.00mm
Physical spec
Dimensions (W x D x H) mm 1981 x 116 x 1187
Wall-hanging screw spec M8*25mm
VESA holes 800x400
In the box
European Standard Power Cord
American Standard Power Cord
British Standard Power Cord
USB Cable
HDMI Cable
Writing Pen x2
Remote Control
Battery
Pen holder/ Pen tray
QSG

Connections
Inputs3 x HDMI 2.0, 1 x VGA, 1 x DisplayPort, 1 x Audio 3.5mm, 3 x USB 2.0, 2 x USB 3.0, 1 x RJ45, 1 x USB-C, 1 x Microphone
Outputs 1 x HDMI 2.0, 1 x S/PDIF, 1 x Audio 3.5mm, 1 x RJ45
Control 5 x USB-A (Interactive), 2 x USB-B interactive, 1 x RS232
Bezel size (top) 22.00mm
Bezel size (bottom) 54.00mm
Bezel size (right) 22.00mm

Bezel size (left) 22.00mm

operating conditions 20% ~ 93% RH
Operating temperature (max) 45°C
Net weight 64 kg
Gross weight 81 kg
Wireless - operating frequency 2.4G/5G
Touch system
System
Windows10/Windows8/Windows7/Windows XP /Linux/Mac (1 Touch point only)/Android/Chrome
Touch accuracy
<1.00mm
Touch point
20 android / 40 windows
Touch tool
Finger, Passive infrared pen
Pen/finger detection
Yes

Power supply
100-240V~ 50/60Hz 3.5A
Power consumption (standby)
0.5W
Power consumption (max)
450W
Power consumption - average (watts)
207.9
System version
Android 11
CPU
Quad-core A55
GPU
Dual-cord A52
RAM
4GB
Storage
32GB
OSD / display languages
20 languages: Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish
